Reversible and Irreversible Thermodynamic Processes

Reversible and irreversible processes are fundamental concepts in thermodynamics. They explain how a system changes from one equilibrium state to another, how work is produced or consumed, and why real processes generate entropy. Understanding the difference is essential for studying heat engines, refrigerators, gas expansion, compression, and the second law of thermodynamics.

A reversible process is an ideal limiting process that can be reversed so that both the system and its surroundings return to their original states without leaving a net change elsewhere. An irreversible process cannot be reversed in this way. Real processes are irreversible to some degree because of friction, finite temperature differences, turbulence, unrestrained expansion, and other dissipative effects.

Interactive Simulation: Reversible vs Irreversible Processes

Compare the two conceptual models below. The reversible model illustrates a slowly moving piston and a gas maintained near equilibrium. The irreversible model illustrates rapid free expansion into an initially unavailable region. The animation is a visual analogy rather than a quantitative molecular-dynamics simulation.

What Is a Reversible Thermodynamic Process?

A reversible thermodynamic process is an idealised sequence of equilibrium states that can be traversed in the opposite direction by making an infinitesimal change in the driving force. In the reversed process, the system and surroundings can both be restored to their initial conditions without a net change in the universe.

For example, consider a gas in a frictionless piston-cylinder assembly. If the external pressure differs from the gas pressure by only an infinitesimal amount, the piston can move very slowly. Reversing that tiny pressure difference reverses the direction of movement. In the ideal limit, this process can be treated as reversible.

A reversible process is not simply a process that can be repeated or that returns the system to its original state. A cycle may return the system to its starting state while still leaving changes in the surroundings. True reversibility requires no net change in the combined system and surroundings.

Figure 1: A reversible path connects equilibrium states and can ideally be traversed in either direction without net changes to the universe.

Key Characteristics of a Reversible Process

• Quasistatic behaviour: The process proceeds through a succession of states arbitrarily close to thermodynamic equilibrium.
• Negligible dissipation: Friction, viscosity-related losses, electrical resistance losses, and similar dissipative effects must be absent in the ideal model.
• Infinitesimal driving differences: Mechanical pressure differences or thermal temperature differences must approach zero for the relevant transfer process.
• Maximum work output: For a specified expansion between appropriate states, reversible expansion provides the maximum work output under the same constraints.
• Minimum compression work: Reversible compression requires the minimum work input for the specified endpoints and constraints.
• No entropy generation: An ideal reversible process generates no entropy within the system and surroundings combined.

Quasistatic behaviour alone is not sufficient for reversibility. A very slow process can still be irreversible if it involves friction, a finite temperature difference, or another source of entropy generation.

What Is an Irreversible Process?

An irreversible process is a real or idealised process that cannot be reversed without leaving a net change in the system or surroundings. It is associated with entropy generation. Most naturally occurring processes are irreversible because they involve finite driving forces or dissipative effects.

Common examples include heat flowing from a hot object to a colder one, gas expanding freely into a vacuum, friction slowing a moving object, and gases mixing spontaneously. These processes proceed in a preferred direction under the stated conditions. Reversing them requires external intervention and does not simply undo every change already made.

Why Free Expansion Is Irreversible

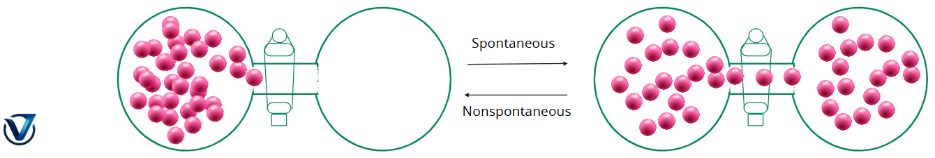

Imagine gas confined to one side of an insulated container, with a vacuum occupying the other side. When a partition is removed, the gas spreads into the available volume. During ideal free expansion, the external pressure opposing the expansion is zero, so the gas performs no boundary work:

For an ideal gas in an insulated container, heat transfer is also zero. With no heat transfer and no work, the first law gives ΔU = 0. Because the internal energy of an ideal gas depends only on temperature, its final temperature equals its initial temperature in this particular idealised process.

Although the internal energy and temperature remain unchanged in this example, the entropy increases. For an ideal gas expanding freely from volume V₁ to V₂, the entropy change is:

This result shows why zero work does not mean that a process is reversible. The gas occupies a larger volume and has a greater entropy than before expansion.

Reversible vs Irreversible Processes: Main Differences

Work Done in a Reversible Thermodynamic Process

Work depends on the path taken between states. On a pressure-volume (P–V) diagram, the boundary work done by a gas during expansion is the area under the pressure-volume curve, using the external pressure for a specified irreversible path and the gas pressure along a reversible quasistatic path.

For a reversible quasistatic process, the gas pressure and external pressure are nearly equal at every step, so the work can be calculated using the equilibrium gas pressure along the path.

Reversible Isothermal Expansion of an Ideal Gas

For an ideal gas expanding reversibly at constant temperature, pressure is given by P = nRT/V. Substituting this expression into the work integral gives:

Here, n is the amount of gas in moles, R is the universal gas constant, T is absolute temperature, and V₁ and V₂ are the initial and final volumes. The equation gives positive work for expansion when V₂ is greater than V₁. For compression, the work done by the gas is negative under this sign convention.

Reversible Adiabatic Expansion

An adiabatic process involves no heat transfer. For a reversible adiabatic process involving an ideal gas with constant heat capacities, the pressure-volume relation is:

The work done by the gas between two equilibrium states can be written as:

This expression assumes γ is constant and the gas follows the ideal-gas model. It should not be applied automatically to arbitrary irreversible adiabatic processes.

Interactive Calculator: Compare Gas Expansion Work

Choose a process and enter the initial and final volumes, initial pressure, and relevant process conditions. The calculator estimates work using the stated idealised models. Work is positive when done by the gas and negative when done on the gas.

Worked Example: Reversible Isothermal Expansion

One mole of an ideal gas expands reversibly and isothermally at 300 K from 5 L to 10 L. Calculate the work done by the gas.

The gas performs approximately 1.73 kJ of work. The result is positive because the gas expands. For the same ideal-gas endpoints and constraints, an irreversible expansion against a constant external pressure generally produces less work than this reversible isothermal path.

Entropy and the Second Law of Thermodynamics

Entropy is a thermodynamic state function that helps describe the direction of spontaneous change. The second law states that the total entropy of an isolated system cannot decrease. When considering a process and its surroundings together, entropy remains unchanged in an ideal reversible process and increases in an irreversible process.

For a reversible transfer of heat, the entropy change associated with heat transfer at boundary temperature T is calculated from dS = δQ_rev/T. This relation is useful for calculating entropy changes even when the actual process is irreversible, provided a suitable reversible path between the same equilibrium states is used to evaluate the state-function change.

An important distinction is that the entropy of the system itself can decrease during an irreversible process. For example, a system can cool and lose entropy while releasing heat to its surroundings. The second law requires that the total entropy change of the system and surroundings combined be non-negative.

Examples of Reversible and Irreversible Processes

• Ideal reversible isothermal expansion: A gas expands slowly while remaining near equilibrium and exchanging heat with a reservoir across an infinitesimal temperature difference.
• Reversible adiabatic expansion: An idealised gas expands without heat transfer and without entropy generation.
• Free expansion: A gas spreads into a vacuum after a partition is removed. It performs no boundary work against the vacuum and the process is irreversible.
• Heat transfer across a finite temperature difference: Energy naturally flows from a hot body to a colder body, generating entropy.
• Frictional motion: Mechanical energy is dissipated into internal energy, making the motion irreversible.
• Spontaneous mixing: Different gases or liquids mix and do not spontaneously separate into their original pure regions without external intervention.

Conditions for Reversibility

Reversibility requires more than simply making a process slow. In the ideal thermodynamic limit, the process must be quasistatic and free from entropy-generating effects. Mechanical equilibrium must be maintained closely, heat transfer must occur through an infinitesimal temperature difference, and friction or other dissipative mechanisms must be absent.

These requirements are idealisations. A real piston has friction, a real heat exchanger transfers energy across a finite temperature difference, and a real gas can experience viscous dissipation. Engineers therefore aim to reduce irreversibility rather than achieve perfect reversibility.

Why Reversible Processes Matter in Engineering

• Heat engine efficiency: Reversible engines establish the theoretical upper limit on efficiency between two thermal reservoirs.
• Refrigeration and heat pumps: Reversible cycles provide a benchmark for the maximum coefficient of performance under specified reservoir conditions.
• Power plant analysis: Ideal Rankine and Brayton cycles help engineers compare real equipment with theoretical performance limits.
• Gas compression: Reversible compression establishes a minimum-work benchmark under specified constraints.
• Entropy calculations: Thermodynamic state changes can be evaluated along convenient reversible paths, even when the actual process is irreversible.
• Equipment optimisation: Reducing friction, pressure losses, leakage, and unnecessary temperature differences can improve performance.

Reversible Processes Quiz

Test your understanding of reversible and irreversible thermodynamics. Submit your answers to see your score and review the explanations.
